item
|
CS-100
|
CS-700
|
Measurement principle
|
Absorption spectroscopic method
|
Absorption spectroscopic method
|
Sample temperature
|
20 to 30 Degree C
|
20 to 30 Degree C
|
Ambient temperature
|
20 to 25 Degree C
|
20 to 30 Degree C
|
Components
|
Max. 4 components
|
Max. 8 components
|
Chemical range
|
Max. 4 ranges
|
Max. 6 ranges
|
Communication
|
Parallel I/O, Analog output, RS-232C
|
Parallel I/O, Analog output, RS-232C
|
Analog output
(4-20 mA)
|
Max. 2 components
|
Max. 6 components
|

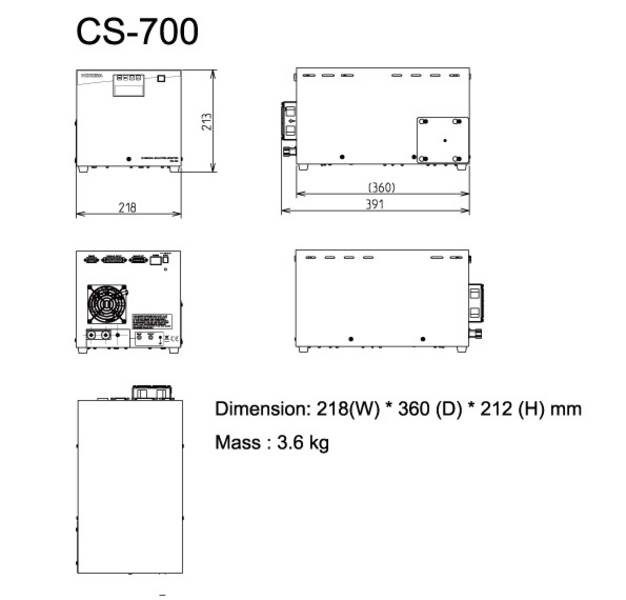

Dimension
|
205(W) X 329(D) X 269(H)mm
|
218(W) X 391(D) X 213(H)mm
|
Power source
|
DC 24V
|
DC 24V(Same connecter of CS-100)
|
Consumable parts
|
Halogen lamp
|
Halogen lamp (Same as CS-100 type)
|
Wavelength
|
UV/NIR
|
UV/NIR
|
Wetted material
|
PTFE, PFA, Sapphire or Quartz,
|
PTFE, PFA, Sapphire,
Kalrez 4079 O-ring
|
