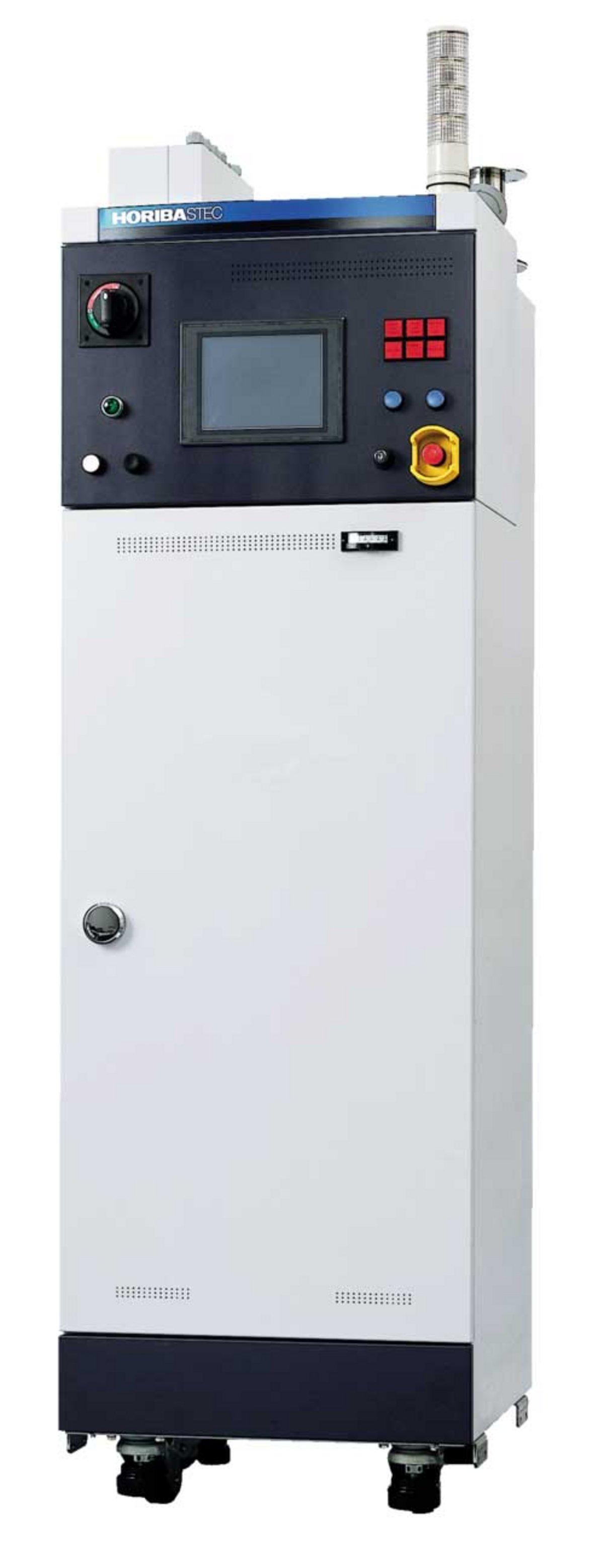

Model
|
LU-A1000 series
|
|
Liquids supported
|
TEOS, TMOB, TMOP, TEOP, BTBAS
|
|
Supply method
|
Pressure movement from He gas
|
|
Gas supply pressure
|
For pressure movement: 0.3 to 0.6 MPa (G); For purge: 0.3 to 0.6 MPa (G), OP N2 0.6 to 0.7 MPa (G)
|
|
Tank
|
Maximum 5-gallon container can be attached (outside of production range)
|
|
Operation
|

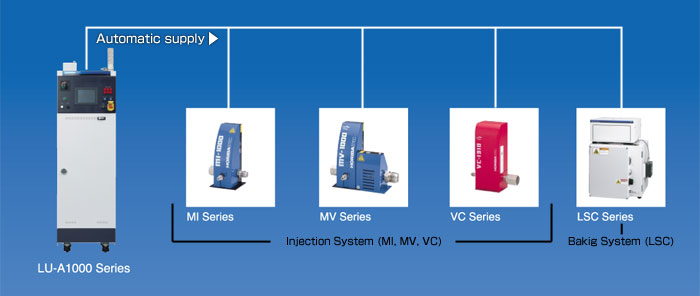

Automatic supply/stop using external signal from supply system
|
|
Operation area display details
|
Pressure error display; When an alarm is triggered: Display hold function (manual reset); Liquid level display; Sequence, etc.
|
|
Gas connection
|
Refer to basic flow
|
|
Power source
|
AC 100 to 240 V, 50/60 Hz, 300 VA
|
|
Electricity connection
|
AC 100 to 240 V breaker connection, signal receptacle
|
|

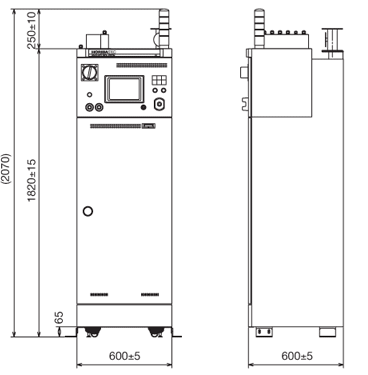

External dimensions
|
See external dimensions diagram
|
|
|
|
|
* Please make decisions regarding the specifications above after meeting with STEC.
|
