All 316/316L SS Wetted Parts
All Welded Construction
Easy to Calibrate Reset Screw
Hermetically Sealed
32 Ra Max on All Wetted Surfaces
Standard Connection: 1½" Tri-Grip^™ (Tri-Clamp^® Compatible)
6 mm (¼") Standard Stem Diameter
Glass Lens Standard
Standard Lengths From 2½ to 15"

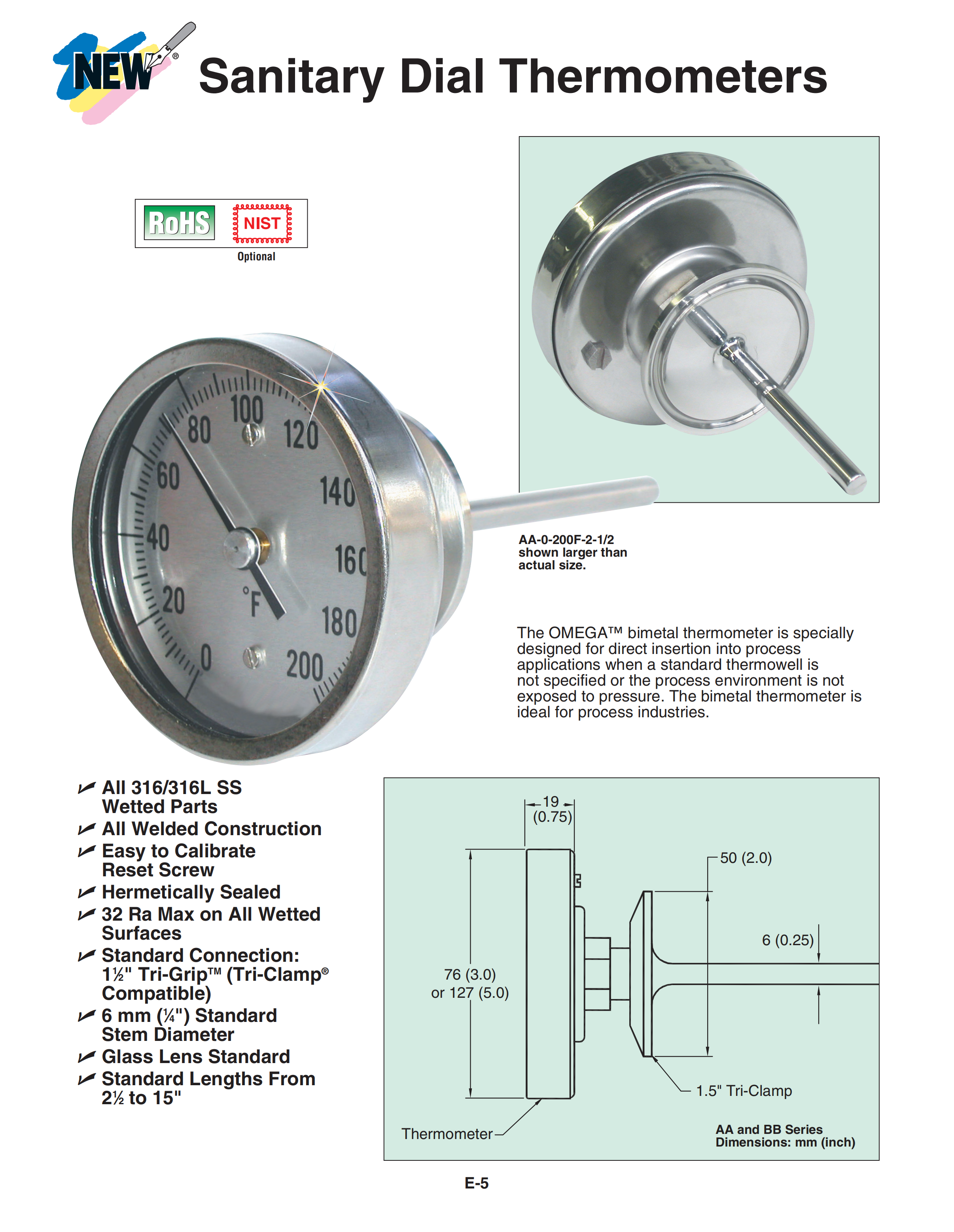

The OMEGA™ bimetal thermometer is specially designed for direct insertion into process applications when a standard thermowell is not specified or the process environment is not exposed to pressure. The bimetal thermometer is ideal for process industries.

Fahrenheit Celsius Dual

Range Div. Range Div. Range Div.

-40 to 160°F 2° -40 to 70°C 1° -40 to 160°F
-40 to 70°C 2°
1°

25 to 125°F** 1° 0 to 50°C** 1°

0 to 200°F 2° 0 to 100°C 2° 25 to 125°F**
-5 to 50°C 1°
1°

0 to 250°F 2° -20 to 120°C 1°

50 to 300°F 2° 0 to 150°C 1° 0 to 200°F
-10 to 90°C 2°
1°

50 to 500°F 5° 0 to 250°C 5°

150 to 750°F 10° 50 to 400°C 5° 0 to 250°F
-20 to 120°C 2°
2°

** 4" minimum stem length.

50 to 300°F
10 to 150°C 2°
2°

50 to 500°F
10 to 260°C 5°
5°

150 to 750°F
70 to 400°C 10°
5°

Fahrenheit	Celsius	Dual
Range	Div.	Range	Div.	Range	Div.
-40 to 160°F	2°	-40 to 70°C	1°	-40 to 160°F -40 to 70°C	2° 1°
25 to 125°F**	1°	0 to 50°C**	1°
0 to 200°F	2°	0 to 100°C	2°	25 to 125°F** -5 to 50°C	1° 1°
0 to 250°F	2°	-20 to 120°C	1°
50 to 300°F	2°	0 to 150°C	1°	0 to 200°F -10 to 90°C	2° 1°
50 to 500°F	5°	0 to 250°C	5°
150 to 750°F	10°	50 to 400°C	5°	0 to 250°F -20 to 120°C	2° 2°
** 4" minimum stem length.
	50 to 300°F 10 to 150°C	2° 2°
50 to 500°F 10 to 260°C	5° 5°
150 to 750°F 70 to 400°C	10° 5°
