• 9 Programmable Modes
• 6 Timing Ranges
• Security Code
• 2- or 1-Timed plus 1 Instantaneous Contact
• CE EMC and Low-Voltage Compatible
• Programmable Reset Function
• External Hold and Reset
• Selectable Up/Down Timing
• LED Status and Timing Indicators
• DIN Rail Mount

Specifications
Timing Ranges:
0 to 999.9 sec, 0 to 9999 sec,
0 to 9999 min, 0 to 99 min 59 sec, 0 to 99 hr 59 min,
23:59 in 24 hr clock mode
Timing Modes:
DE, DDE, DP, CCT, DE-2, IT-2, DE-IT, DD-2, 24HR
Supply Voltage:110 Vac and 230 Vac 50/60 Hz
or 12 to 24 Vac/Vdc
Supply Variation:±10% of supply voltage
Battery Backup:External 3 Vdc to retain clock on
24 hr mode only at loss of supply voltage
Power Drain: 3 Va max
Contact Ratings:
OP1: 8 A @ 240 Vac, SPDT
OP2: 5 A @ 240 Vac resistive, SPST
Reset Time:100 msec max
Ambient Conditions
Working Temp:0 to 50°C (32 to 122°F)
Storage Temp:0 to 70°C (32 to 158°F)
Approvals: Complies with CE directives EN50081-1 and
EN50082-1 for EMC and EN61010-1 for low voltage
Weight: 240 g (8.5 oz)

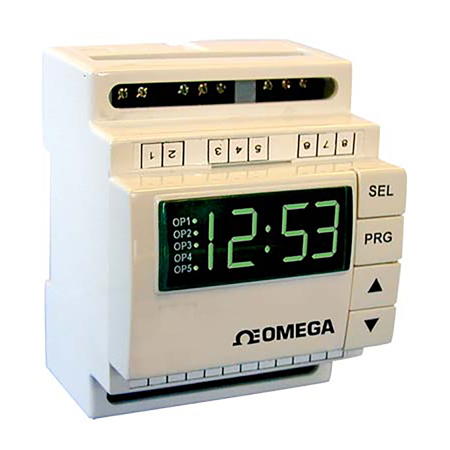

• PTC-16
